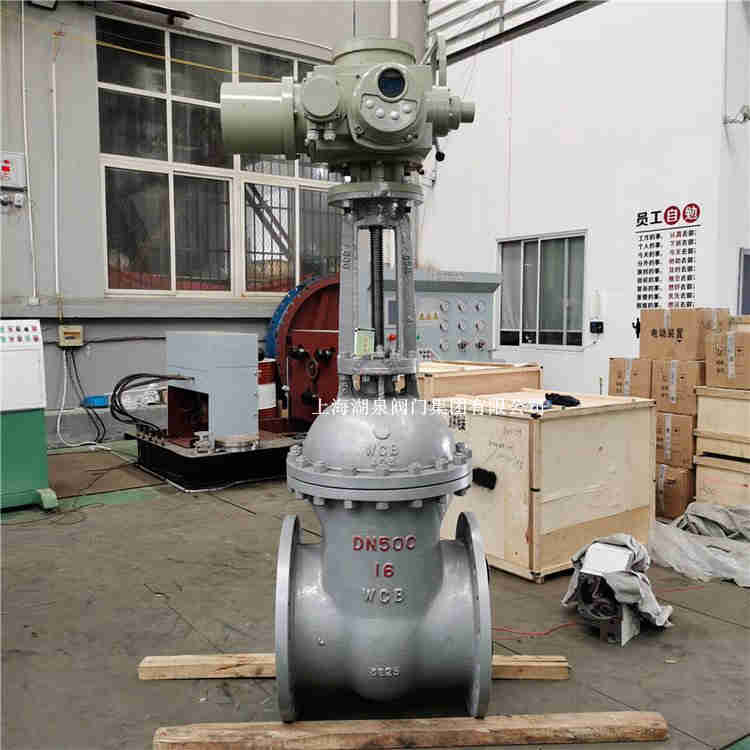

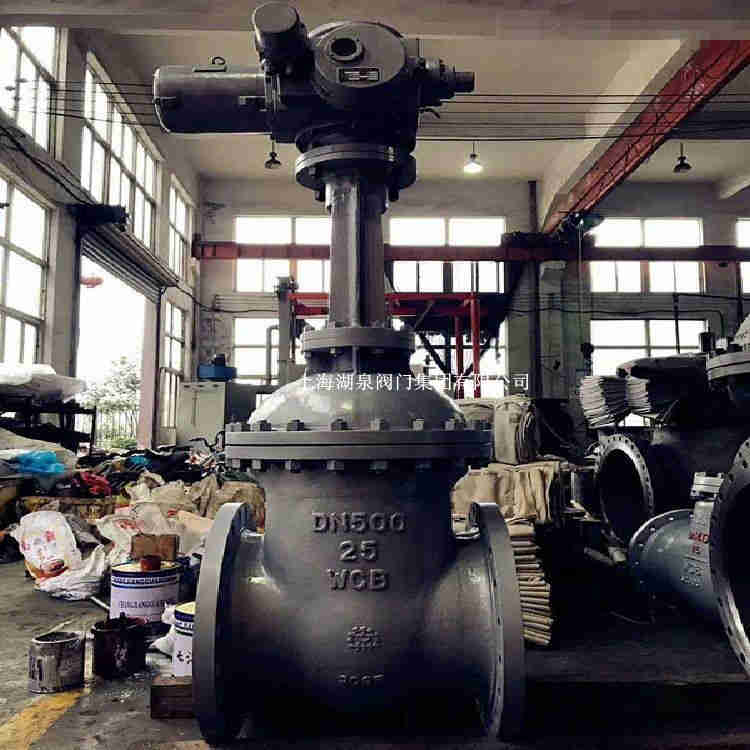

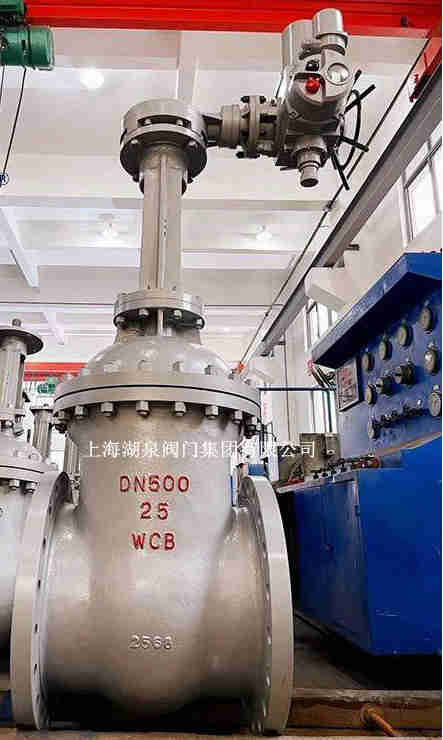

上海湖泉閥門集團有限公司z941H-40c-DN500電動遠程控制法蘭閘閥是一種遠程智能操作式閥門。該產品常用于給排水及工業系統中的自動控制，控制反應準確快速，根據電信號遙控開啟和關閉管道路系統，實現遠程操作?？捎糜诖笮碗妱硬僮飨到y(tǒng)。它關閉速度可調，平穩關閉而不產生壓力波動。該閘閥維修簡單、使用方便、安全可靠等優點。電動執行器采用一體化結構設計，具有自診斷功能，使用和調校十分方便。有數字顯示，可看到控制信號值、反饋信號值、電動手操值。

湖泉 z941H-40c-DN500電動遠程控制法蘭閘閥電動執行機構功能優點：帶斷控制信號故障判斷、報警及保護功能。即斷信號時可使執行機構或開；或關；或保持；或在0～100%之間予置的任意位置。及帶閥門堵轉故障判斷、報管及保護功能。占據空間體積小，節省安裝管道及費用。具有調節精度高、調節性能好的特點，允許溫差≤l50℃。除了閱蓋處襯套導向外，閥芯側面與閥座內表面也有導向作用，導向面積大，工作可靠。波紋管密封型對移動的閥桿形成安全的密封，堵絕液體外漏。

z941H-40c-DN500電動遠程控制法蘭閘閥產品參數
口 徑：DN15-DN600
壓 力：1.6Mpa-6.4Mpa
連接方式：法蘭、螺紋、焊接等。
傳動方式：手動、正齒輪、錐齒輪、氣動、電動等。
閥體材質：WCB、304、316、銅、鉻鉬鋼等
使用介質：非腐蝕或腐蝕的氣體液體。
介質溫度：-29℃-425℃

z941H-40c-DN500電動遠程控制法蘭閘閥產品主要零部件材料

閥體、閥蓋	閥板	閥座	閥桿	填料	適用介質	適用溫度(≤℃)
WCB	WCB+D507MO	D577	2Crl3	柔性石墨	水、油品、蒸汽	425
ZGlCr5MO	ZGlCr5M0+ Stellite12	1Crl8Ni9+ Stellite6	25Cr2M01VA	柔性石墨	水、油品、蒸汽	550
ZGlCrl8Ni9Ti	Crl了Ni2	1Crl8Ni9+ Stellite6	1Crl8Ni9Ti	PTFE	硝酸類、堿類	200
ZG00Crl7Nil4M02	316L+ Stellite12	316L+Stel1ite6	316L	PTFE	尿素、甲銨液、磷酸	200


Z941H-40C-DN15,Z941H-40C-DN20,Z941H-40C-DN32,Z941H-40C-DN40,Z941H-40C-DN50，   Z941H-40C-DN65,Z941H-40C-DN80,Z941H-40C-DN100,Z941H-40C-DN125,Z941H-40C-DN150,Z941H-40C-DN200,Z941H-40C-DN250,Z941H-40C-DN300,Z941H-40C-DN350,Z941H-40C-DN400,Z941H-40C-DN450,Z941H-40C-DN500,Z941H-40C-DN600,Z941H-40C-DN700,Z941H-40C-DN800,Z941H-40C-DN900,Z941H-40C-DN1000,Z941H-40C-DN1200,Z941H-40C-DN1400,Z941H-40C-DN1600
Z941H-4.0C-DN15,Z941H-4.0C-DN20,Z941H-4.0C-DN32,Z941H-4.0C-DN40,Z941H-4.0C-DN50,Z941H-4.0C-DN65,Z941H-4.0C-DN80,Z941H-4.0C-DN100,Z941H-4.0C-DN125,Z941H-4.0C-DN150,Z941H-4.0C-DN200,Z941H-4.0C-DN250,Z941H-4.0C-DN300,Z941H-4.0C-DN350,Z941H-4.0C-DN400,Z941H-4.0C-DN450,Z941H-4.0C-DN500,Z941H-4.0C-DN600,Z941H-4.0C-DN700,Z941H-4.0C-DN800,Z941H-4.0C-DN900,Z941H-4.0C-DN1000,Z941H-4.0C-DN1200,Z941H-4.0C-DN1400,Z941H-4.0C-DN1600
Z941H-40P-DN15,Z941H-40P-DN20,Z941H-40P-DN32,Z941H-40P-DN40,Z941H-40P-DN50，   Z941H-40P-DN65,Z941H-40P-DN80,Z941H-40P-DN100,Z941H-40P-DN125,Z941H-40P-DN150,Z941H-40P-DN200,Z941H-40P-DN250,Z941H-40P-DN300,Z941H-40P-DN350,Z941H-40P-DN400,Z941H-40P-DN450,Z941H-40P-DN500,Z941H-40P-DN600,Z941H-40P-DN700,Z941H-40P-DN800,Z941H-40P-DN900,Z941H-40P-DN1000,Z941H-40P-DN1200,Z941H-40P-DN1400,Z941H-40P-DN1600
Z941H-4.0P-DN15,Z941H-4.0P-DN20,Z941H-4.0P-DN32,Z941H-4.0P-DN40,Z941H-4.0P-DN50,Z941H-4.0P-DN65,Z941H-4.0P-DN80,Z941H-4.0P-DN100,Z941H-4.0P-DN125,Z941H-4.0P-DN150,Z941H-4.0P-DN200,Z941H-4.0P-DN250,Z941H-4.0P-DN300,Z941H-4.0P-DN350,Z941H-4.0P-DN400,Z941H-4.0P-DN450,Z941H-4.0P-DN500,Z941H-4.0P-DN600,Z941H-4.0P-DN700,Z941H-4.0P-DN800,Z941H-4.0P-DN900,Z941H-4.0P-DN1000,Z941H-4.0P-DN1200,Z941H-4.0P-DN1400,Z941H-4.0P-DN1600

z941H-40c-DN500電動遠程控制法蘭閘閥產品主要技術參數

MZ941H-40型礦用電動閘閥
閥門口徑DN(mm)	65	80	100	125	150	200	250	300	350	400	450	500
配套電裝規格 額定電壓660（380）V	ZB15-24		ZB20-24		ZB30-24		ZB45-24	ZB60-24	ZB90-24		ZB120-24



公稱壓力(MPa)	試驗壓力(MPa)
	殼體	密封(液)	密封(氣)	上密封
Z941H-1.6C	2.4	1.76	0.6	1.76
Z941H-2.5C	3.8	2.75	0.6	2.75
Z941H-4.0C	6.0	4.4	0.6	4.4
Z941H-6.4C	9.6	7.04	0.6	7.04
Z941H-10.0C	15.0	11.0	0.6	11.0
Z941H-16.0C	24.0	17.6	0.6	17.6


z941H-40c-DN500電動遠程控制法蘭閘閥產品主要尺寸

公稱通徑DN（in）	主要外形尺寸及連接尺寸										電動裝置
	L	D	D1	D2	D6	b	z-Φd	f	f2	H
Z940、Z941、Z942
40	200	145	110	85	76	18	4-Φ18	3	4	617	ZB15
50	250	160	125	100	88	20	4-Φ18	3	4	665	ZB15
65	280	180	145	120	110	22	8-Φ18	3	4	680	ZB15
80	310	195	160	135	121	22	8-Φ18	3	4	752	ZB15
100	350	230	190	160	150	24	8-Φ23	3	4.5	846	ZB20
125	400	270	220	188	176	28	8-Φ25	3	4.5	908	ZB20
150	450	300	250	218	204	30	8-Φ25	3	4.5	1087	ZB40
200	550	375	320	282	260	38	12-Φ30	3	4.5	1243	ZB40
250	650	445	385	345	313	42	12-Φ34	3	4.5	1429	ZC45
300	750	510	450	408	364	46	16-Φ34	4	4.5	168	ZC60
350	850	570	510	465	422	52	16-Φ34	4	5	1738	ZC90
400	950	655	585	535	474	58	16-Φ41	4	5	1897	ZC120
450	1050	680	610	560	524	60	20-Φ41	4	5	2104	ZC180
500	1150	755	670	612	576	62	20-Φ48	4	5	2401	ZC180
